Are you struggling with wiring a fuel pump relay? You’re not alone!
Whether you’re a seasoned mechanic or a beginner, tackling vehicle electrical systems can be daunting. But imagine the satisfaction of getting it right, knowing that your car will run smoother and more efficiently. The good news? You can do it, and this guide will make the process simpler and stress-free.
By following these steps, you’ll learn how to wire a fuel pump relay correctly, ensuring your vehicle gets the fuel it needs without any hiccups. Ready to dive in and master the art of wiring? Let’s get started!
Tools And Materials Needed
Gather the right tools before starting the task. You need a relay and wire connectors. A screwdriver is useful for fitting parts. Electrical tape will help secure the wires. Wire cutters are essential for cutting wires neatly.
Use a multimeter to check connections. Safety goggles protect your eyes. Gloves keep your hands safe. Also, keep a wiring diagram nearby. It guides you through the process.
Zip ties can tidy up loose wires. They make the work look neat. Cable ties are handy too. A power drill might be needed for some jobs. Ensure you have a socket set ready for any nuts and bolts.
Safety Precautions
Safetyis the first step. Wiringa fuel pump relay needs care. Keep tools in a safe place. Wear gloves to protect your hands. Use goggles for your eyes. Check wires for damage. Broken wires can be dangerous. Make sure all connections are tight. Loose connections can cause sparks.
Choose a clean space. Messy places can hide hazards. Ensure the area is well-lit. Poor lighting leads to mistakes. Work on a non-slip surface. Slipping can cause injury. Clear away any clutter. Clutter can create confusion.
Understanding Relay Function
A relay is like a switch. It controls the flow of electricity. Relays use a small signal to control a larger one. This makes them very useful.
Inside a relay, there are coils and contacts. The coil creates a magnetic field. This field moves the contacts. When the contacts move, the circuit opens or closes. This is how a relay turns power on or off.
The fuel pump relay sends power to the fuel pump. This helps the engine get fuel. The relay makes sure the pump works only when needed. It saves energy and protects the pump. Without the relay, the pump could run all the time. This would wear it out quickly.
Credit: www.vasttuning.com
Locating The Fuel Pump Relay
The fuel pump relay is often found in the engine bay. It’s usually inside the fuse box. Check your car manual for the exact location. Some cars have it under the dashboard. Look for a small, square-shaped box. It may have a diagram on the cover. This helps identify the relay.
Sometimes, it’s in the trunk. Near the battery or spare tire. Consult your manual if unsure. Make sure your car is off before checking. Safety is important. Use a flashlight for better visibility. Identify the relay among others. It’s often marked or numbered.
Identifying Relay Terminals
Relays have different terminals. Common terminal types include numbered ones. These often are 30, 85, 86, and 87. Each one has a role. Terminal 30 is for power. It connects to the battery. Terminal 85 links to the ground. Terminal 86 connects to the switch. Terminal 87 sends power to the fuel pump.
Diagrams help understand relays. Look for numbers on the relay. Match them to the diagram. This helps in knowing what each terminal does. A good diagram shows lines and symbols. Lines show connections. Symbols show parts like switches and pumps. Reading diagrams is like solving a puzzle. It tells you where wires go.
Credit: www.phearable.net
Wiring The Fuel Pump Relay
First, find the power source. It gives electricity to the fuel pump relay. Make sure the source is safe and suitable. Use a wire to connect it to the relay’s power terminal. Ensure the connection is tight. This prevents any accidental disconnection. Double-check the connection to avoid any issues later.
Ground wire is important. It completes the circuit. Attach the ground wire to the relay’s ground terminal. Connect the other end to the car’s metal body. A good connection is crucial for safety. Check for rust before attaching the ground wire. Rust can cause problems.
Control circuit manages the relay. Connect it to the ignition switch. This ensures the pump works only when needed. Use a suitable wire for this link. Make sure all connections are secure. This prevents any malfunction in the circuit.
Load circuit powers the fuel pump. Connect it from the relay to the fuel pump. Ensure the wire is thick enough. Thick wires handle more power. Tighten the connections well. Loose connections can cause the pump to fail.
Testing Relay Functionality
Start by checking the relay’s powerconnection. Use a multimeterto measure it. Ensure there is 12 voltspresent. This confirms the batteryis sending power. If not, check the battery and wires. Make sure all wires are tightand not broken. A bad wire can stop power flow.
Sometimes the relay won’t work. Check if it clickswhen powered. No click means it’s faulty. Replace it. Look for burn markson the relay. This shows it’s damaged. Change it if needed. Bad ground connections can cause issues too. Ensure the ground wireis secure. Test again to see if the problem is fixed.
Tips For Long-term Maintenance
Regular checks keep the fuel pump relay working well. Inspect wires for any damage. Replace them if needed. Clean connectors to ensure a good connection. Dirt can block the flow of electricity. Listen for unusual sounds from the fuel pump. This can mean trouble. Check the relay if the car won’t start. It might need replacement.
Keep a spare relay in your car. This helps in emergencies. Use quality parts for the best performance. Cheap parts fail quickly. Follow the car manual for specific instructions. This ensures proper maintenance.

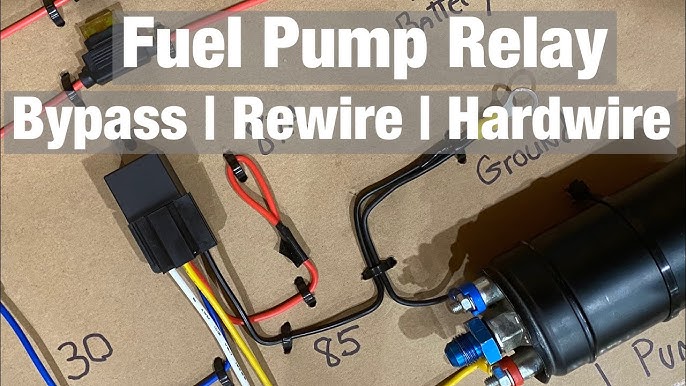

Credit: www.youtube.com
Conclusion
Wiring a fuel pump relay can seem tricky at first. With careful steps, it becomes manageable. Start by gathering the right tools and materials. Follow each step closely for safe installation. Double-check connections to avoid future issues. This process ensures your vehicle runs smoothly.
Remember to consult a professional if unsure. Proper wiring improves fuel efficiency and performance. Always prioritize safety throughout the task. Enjoy the benefits of a well-wired fuel pump relay. Your vehicle will thank you.
